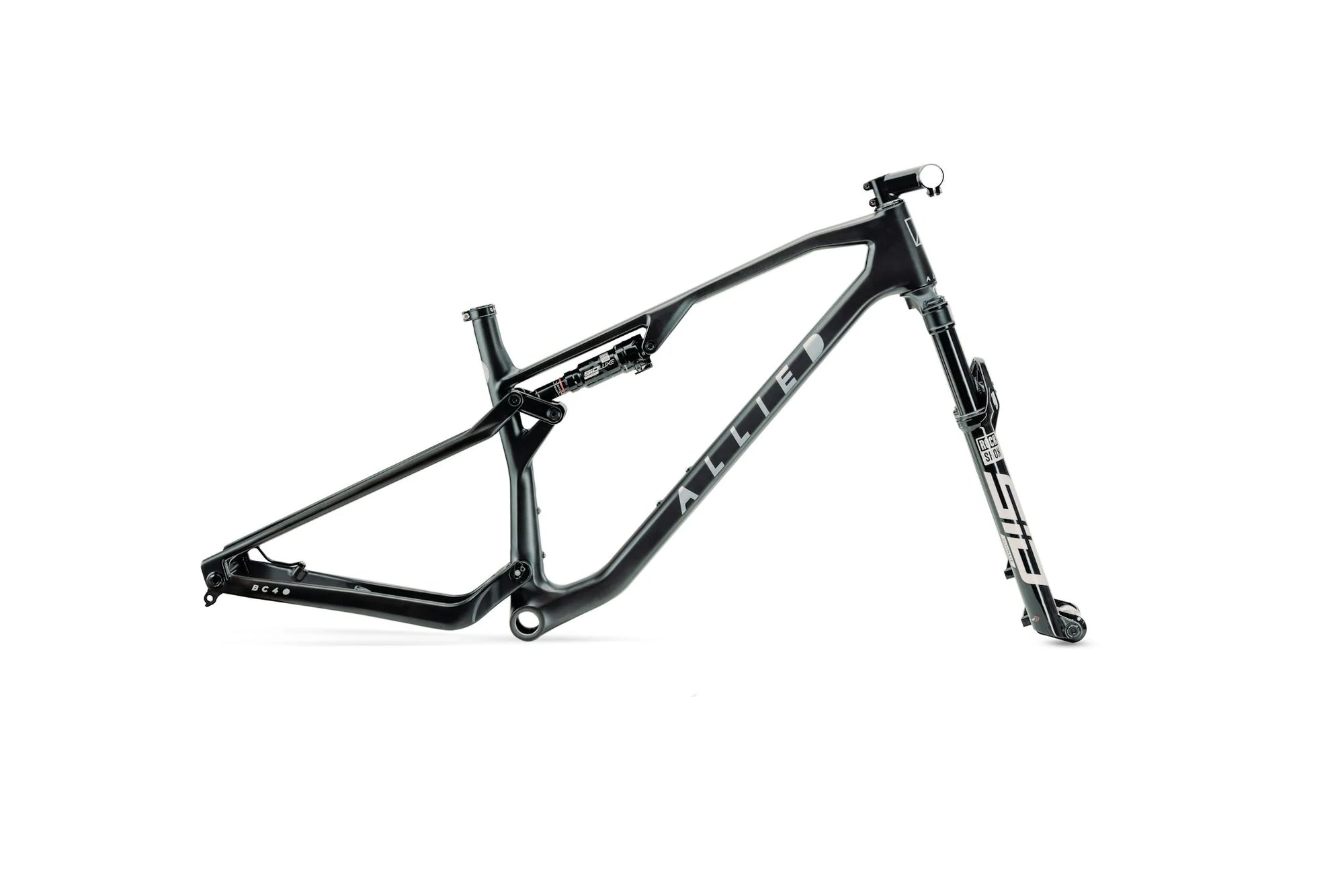

Allied BC40 Framekit
Allied BC40 Framekit
Allied BC40 Framekit

Allied BC40 Framekit

35.500,00 kr
Adding to Cart Added to Cart

Start your dream mountain bike build with BC40’s frameset. It’s the perfect canvas to create your one-of-a-kind ride with custom components and head-turning custom paint.

  • Carbon frame
  • 120mm rear travel
  • Spec to suit

RACE-DAY LIGHT, PLAY-DATE READY

Inspired by the rocky surfaces, dynamic corners, and punchy climbs of our legendary Back 40 trail, BC40 is a second-to-none, modern XC racing bike with legs to take on much bigger trails. Its lightweight, high-performance carbon frame and progressive geometry deliver fast accelerations and race-day sharpness. Its World Cup talent extends to the 120mm suspension travel that also sets it up as a do-it-all weekend trail sled, delivering uncanny levels of control and confidence beyond its category.

Fork 120mm / 530 Axle to Crown
Front derailleur -
Rear derailleur UDH Compatible
Shift levers -
Cassette -
Chain -
Crankset Boost Chainline

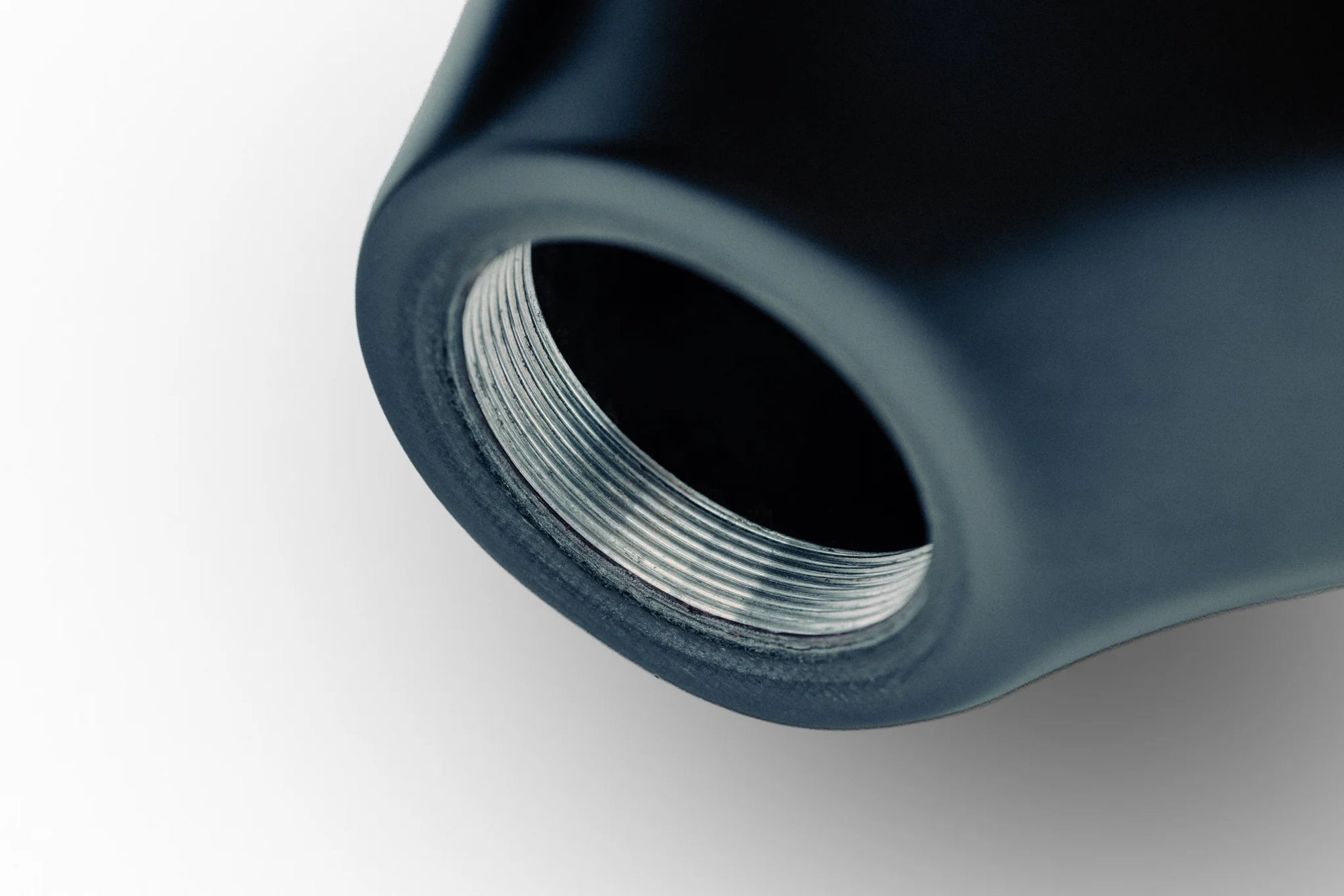

Bottom bracket 73mm Threaded
Brakes Post Mount 160
Handlebar -
Handlebar tape -
Stem -
Saddle -
Seatpost 31.6 or 30.9
Wheelset -
Tires 29x2.4 max

Geometry

For optimal performance and control on fast and technical tracks, BC40 uses a slack head tube angle and a long front-to-center measurement. The result is geometry that positions the rider further behind the front wheel for world-class ride quality and predictable handling, no matter how hard you push it.

All units are in Millimeters or Degrees
SM MD LG XL
a Stack 598 609 622 633
b Reach 420 445 475 501
c Effective top tube 569 596 630 659
d Seat tube length 395 420 450 500
e Head tube length 95 105 120 135
f Head tube angle 66.5° 66.5° 66.5° 66.5°
g Seat tube angle 76° 76° 76° 76°
h Bottom bracket drop 40 40 40 40
i Chainstay length 435 435 435 435
k Wheelbase 1145 1174 1210 1241
m Fork rake 44 44 44 44
n Front center 710 739 778 806
o Wheel size 29 29 29 29
